I-Horizontal Planetary Ball Mill

Ikhaya >  iimveliso >  I-Horizontal Planetary Ball Mill

bonke

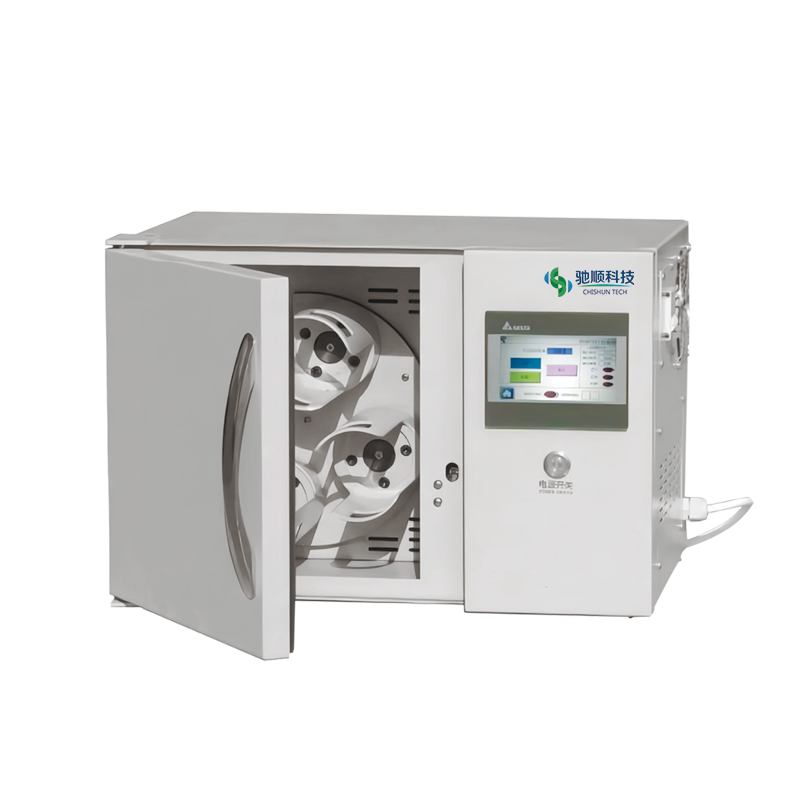

QM-WX2 Ukungqusha kwebhola yeplanethi ethe tye

QM-WX2 Ukungqusha kwebhola yeplanethi ethe tye

uphando
  • isishwankathelo
  • ye parameter
  • Iimbonakalo
  • uphando
  • Iimveliso enxulumene
QM-WX2 Ukungqusha kwebhola yeplanethi ethe tye
QM-WX2 Ukungqusha kwebhola yeplanethi ethe tye

inkcazelo:

QM-WX2iplanethi yebhola yokusila ethe tyaba sisixhobo esitsha sokuxuba, ukusila kakuhle, ukulungiselela iisampulu, uphuhliso lwemveliso entsha kunye nokuveliswa kwebhetshi encinci yemathiriyeli yobuchwepheshe obuphezulu. Imveliso ineenzuzo zobukhulu obuncinci, umsebenzi opheleleyo, ukusebenza kakuhle kunye nomsindo ophantsi. sisixhobo esifanelekileyo kumaziko ophando lwenzululwazi, iikholeji kunye neeyunivesithi kunye neelebhu zeshishini ukufumana iisampulu zophando (iisampulu ezine zinokufunyanwa ngexesha elinye kuvavanyo ngalunye). I-QM-WX2iplanethi yebhola yokusila ethe tyaba ixhotyiswe nge-vacuum ball mill, enokuthi igaye isampuli kwi-vacuum. Isetyenziswa kakhulu kwi-geology, izibonelelo zezimbiwa, i-metallurgy, i-electronics, imathiriyeli yokwakha, i-ceramics, ikhemikhali, imboni yokukhanya, amayeza, ukhuseleko lokusingqongileyo kunye namanye amasebe.

I-QM-WX2ilitye lokusila leplanethi yebhola ethe tye lixhotyiswe ngokulingeneyo kunye neitanki ezine ezithe tye ezifakelweyo zebhola ezithe nkqo kwitafile ejikayo yenqwelomoya. Xa i-turntable ijikeleza (ijikeleza), itanki yebhola yebhola ijikeleza (ijikeleza) ijikeleze i-axis yayo ephakathi. Ngenxa yokuba akukho ndawo esezantsi esisigxina yetanki yokugaya ibhola xa ijikeleza, kwinkqubo yezinto zokugaya, ibhola lokugaya kwitanki ayichaphazeli nje kuphela amandla e-centrifugal okujikeleza kunye nokujikeleza, kodwa idlala indima ethile. Ubukhulu kunye nolwalathiso lwamandla omphumo asebenza kwibhola nganye yokusila ihlala iguquka kwaye ihluke, okwenza umkhondo wazo zonke iibhola zokugaya zingalungelelaniswa. Xa umatshini usebenza ngesantya esiphezulu, ibhola yokugaya ifumana amandla okwaneleyo okungqubana kwaye ibethe ngobundlobongela kunye nokugaya izinto eziphathekayo, eziphucula kakhulu umphumo wokugaya kunye nokusebenza kakuhle kokugaya.


iinkcukacha:

QM-WX2

Iindawo zokufaka:

Izinto zombane, umhlaba, imathiriyeli yokubhabha, iibhetri, iiseramikhi, ibhayoloji, ijoloji kunye nemithombo yezimbiwa, isinyithi.

Iimpawu zesampulu:

Ithambile, iqinile, ibhityile, inentsinga, yomile okanye imanzi.

Ubukhulu bomthamo wokulayisha:

I-2/3 yomthamo wetanki yokusila yebhola.

Ukusila ngevacuum:

Itanki yokugaya i-vacuum yokuzikhethela.

Indlela yokusebenza:

ukucola okuthe tyaba

Obona bungakanani bobungakanani benaliti:

Izinto zomhlaba ≤ 10mm ezinye izinto ≤ 3mm.

Ukukhutshwa kokugqibela kwegranularity:

Ubuncinci ukuya kuthi ga kwi-0.1um (oko kukuthi, 1.0X10mm4).

Ixesha elilelinye:

1-9999min.

Isantya sokugaya ibhola:

Ukujikeleza 325rpm / min, ukujikeleza 650rpm / min.

Ubungakanani betoti yokusila:

250ml, 500ml.

Iinkcukacha zoPakethe:

665 * 480 * 500mm

Isiqinisekiso sesixhobo sombane:

Ukuqinisekiswa kwe-UL, isiqinisekiso se-CE.

isiqinisekiso soKhuseleko:

Iphumelele iSatifikethi se-CE ye-EU (S/N: 802693615232).

Isantya se-Centrifugal:

(g=9.81m/s2): 20g.

Inkcazelo yombane:

220V 0.75kw 50~60Hz.

Ugcino lwedatha:

Inokugcina iiseti ezininzi zamanyathelo ahlukeneyo enkqubo.

Ukujongwa kwedatha:

Ukubekwa kweliso kwexesha lokwenyani lokuqhuba kwesimo kunye nenkxaso yokubeka iliso kwimpazamo.

Ukusebenza okucwangcisekileyo:

Amaqela ama-5 amanyathelo okuprograma.

Uphuculo lwesoftware:

Ukubonelela ngenkonzo yokuphucula yasimahla ubomi bonke.

Indlela yokulawula:

Ujongano lwegraphical man-machine yesiTshayina kunye nesiNgesi (esele ifakwe ngaphambili iChishun ibhola yokulawula isoftware inguqulelo yeV1.0), iindlela zokusebenza ezicwangcisiweyo ezininzi (ukusebenza okuhle nokubi okutshintshisanayo, ukusebenza kwekhefu, ukusebenza kwexesha), ukugcinwa kwedatha kunye nomsebenzi wememori, inkqubo yasimahla. useto, i-alam ezenzekelayo.

Impahla yekhithi yokusila:

Intsimbi engatyiwayo, i-vacuum steel stainless, i-agate, iiseramikhi, i-zirconia, inayiloni, i-polytetrafluoro, i-tungsten carbide, i-Saigang, i-Silicon Nitride, njl.
